심천 Shichuangxinke 전자공학 Co., 주식 회사
전문가는 좋은 품질을 만들고, 각 고객에게 완벽한 제품 및 서비스를 제공합니다.
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | SCXK |
| 인증: | CE/ROHS/FCC/ISO/UL |
| 모델 번호: | P3.91 |
| 최소 주문 수량: | 1SQM |
|---|---|
| 가격: | negotiation |
| 포장 세부 사항: | 합판 상자, 비행 케이스, 당신은 당신이 좋아하는 무슨을 선택합니다. |
| 배달 시간: | 7-10 작업 일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 5000sqm |
| 피치: | 3.91mm | 단위 크기: | 250*250mm |
|---|---|---|---|
| 내각 크기: | 500*500mm/500*1000mm | 형태 몰기: | 1/8S |
| 화소 조밀도: | 65410/m2 | 화소: | 64*64dots |
| 광도: | ≥6000cd/sqm | 보장: | 3 년 |
| 하이 라이트: | 250*250mm 임대는 Displaly,P3.91 임대 주도하는 Displaly,250*250mm 야외 고정된 LED 디스플레이를 이끌었습니다 |
||

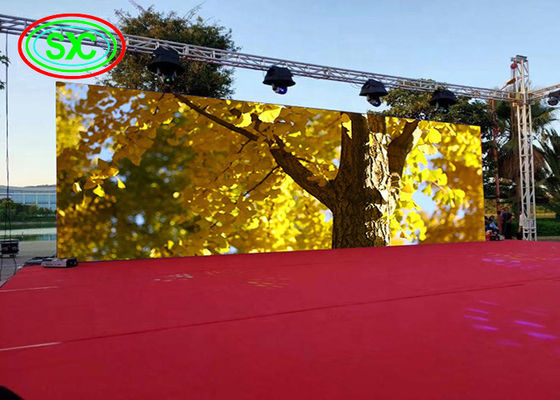

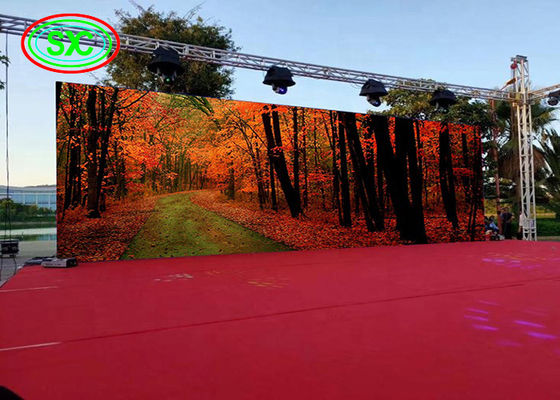

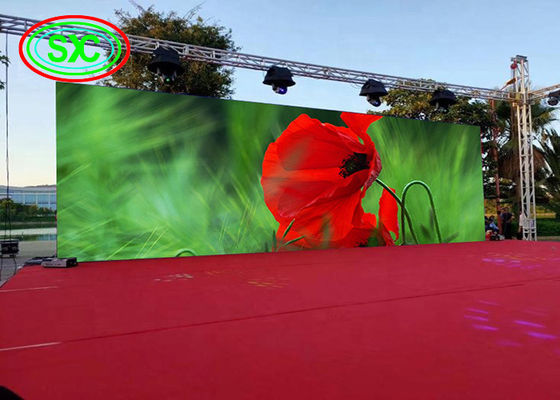

HD Outdoor P3.91 Hanging Rental led displaly for commical stage show
Product description
As we all know our human is an visual creature ,everyone enjoy this beautiful and colorfu world l, and led display screen can provide pelope much more Visual enjoyment,then p3.91 led display is one high density and quality product of it,let’s start a visual feast together!
Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 250x250mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 8pcs |
Cabinet Parameter:
| Cabinet size | 500x1000mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 12.5kg |
| Cabinet resolution | 128x256 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥6500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 4m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 330 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥1000frames/s |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |
Cabinet
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1, Dimension (Width and Height)
2, Location of installation. (picture is best)
3, Purpose. ( rental or use by youself)
4, Star effect or video effect which you need.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Save your time and money with us!
