심천 Shichuangxinke 전자공학 Co., 주식 회사
전문가는 좋은 품질을 만들고, 각 고객에게 완벽한 제품 및 서비스를 제공합니다.

|
| 원래 장소: | 중국 |
| 브랜드 이름: | SCXK |
| 인증: | CE/ROHS/FCC/ISO/UL |
| 모델 번호: | P8,P10 |
| 최소 주문 수량: | 10sqm |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 경우가 일 수 있는 나무 상자와 비행기는 선택합니다. |
| 배달 시간: | 7-12 작업 일 |
| 지불 조건: | L/C, 서부 동맹, MoneyGram |
| 공급 능력: | 한달에 5000sqm |
| 내각 물자: | 다림질한 강철 장은 또는 주조 알루미늄 죽습니다 | 내각 크기:: | 960mm*960mm |
|---|---|---|---|
| 단위 크기:: | 320mm*160mm | 화소 조밀도:: | 10000의 점/sqm |
| 백색의 광도:: | 7500CD/sqm | IP 등급:: | IP65/IP54 |
| 애플리케이션 :: | 임대 디스플레이 | 내각 물자:: | 주조 알루미늄은 죽습니다 |
| 내각 무게:: | 26kg | 전시 기능:: | 영상 |
| 스크린 차원:: | 주문 제작된 사이즈 | ||
| 강조하다: | 960x960mm 내각 경기장 LED 디스플레이,7500 시디 / 스큐텀 경기장 LED 디스플레이,IP65 경기장 주변 LED 디스플레이 |
||
Parameter specification
| model | P10 | |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 | |
| LED type | SMD | |
| Module size(mm) | W320×H160 | |
| Pixel composing | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 | |
| Cabinet structure | Water-proof | |
| installation | fixed on the back | |
| screen material | magnesium alloy | |
| Protect degree | IP65 front ,IP54 rear | |
| Viewing distance(m) | 10~100m | |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more | |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max | |
| Driving IC | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥2000- 3000 | |
| Viewing angel(c) | H120 V110 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
| Gray | 65536 | |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
| Average No Failure Time | 20000 hours | |
| Life span | 100,000 hours | |
| Out-of Control rate | 0.0001 | |
| To floor drain current | Less than 3.5MA | |
| Control system | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional |
|

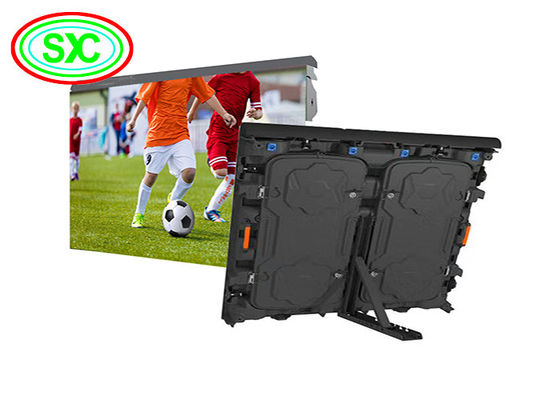

Cabinet details
ironed steel cabinet
Die casting aluminum

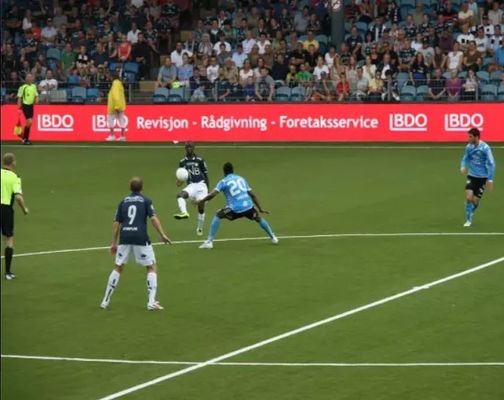

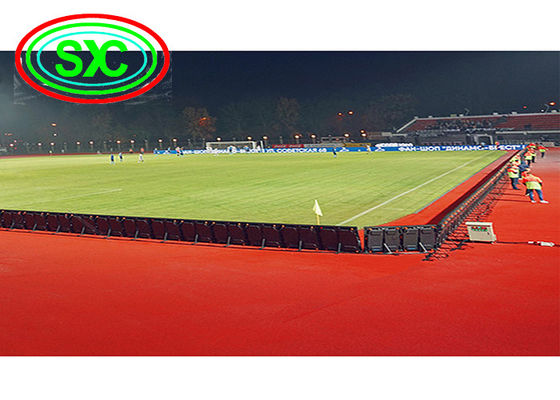

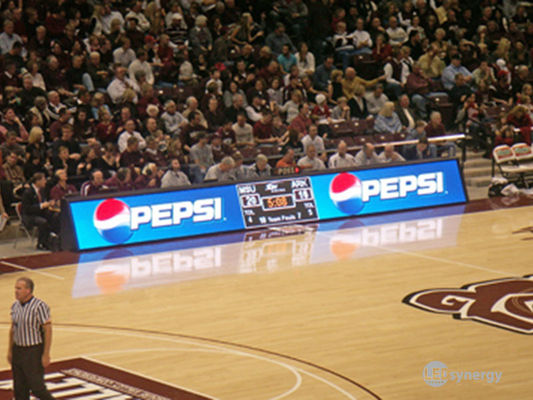

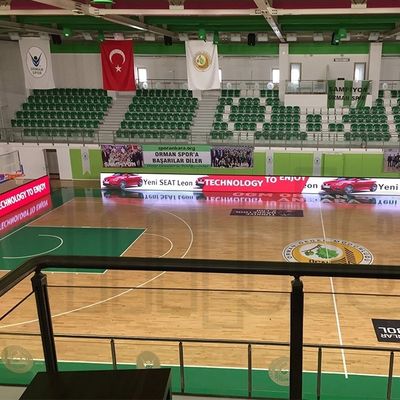

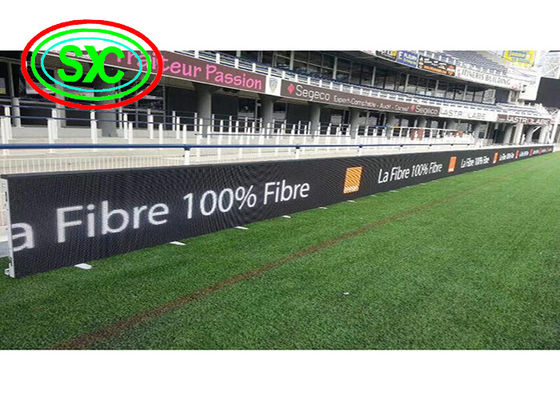

Our case
Our service
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
8) Warranty period: 2 years after shipment.
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
