| 원래 장소: | 중국 |
| 브랜드 이름: | SCXK |
| 인증: | CBCE/ROHS/FCC/ISO/UL |
| 모델 번호: | P8 또는 P10 |
| 최소 주문 수량: | 10 sqm |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 비행기 경우, 나무 상자, 통, 그것이 당신에게 달려있습니다. |
| 배달 시간: | 8-16 일로 일합니다 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 5200개 스큐텀 달 |
| 애플리케이션 :: | 경기장에 의하여 지도되는 전시 | 색 :: | 풀 컬러 |
|---|---|---|---|
| 패널 사이즈 :: | 960*960*85mm | 화소 피치 :: | 5/6/8/10 밀리미터 |
| 용법 :: | 야외입니다 | 전시 기능:: | 화면 |
| 밝기 :: | 5500cd/sqm | 보증 :: | 2년이요 |

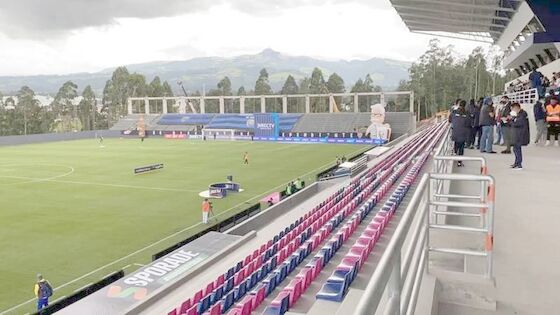

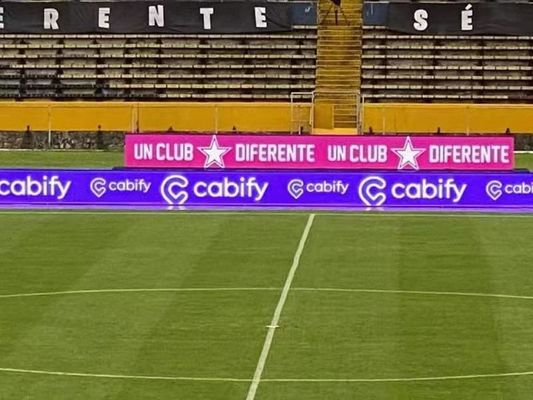

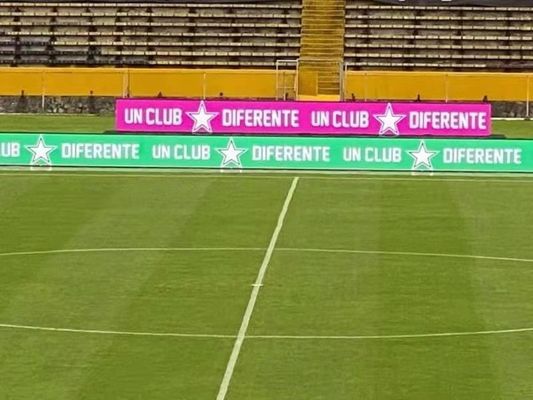

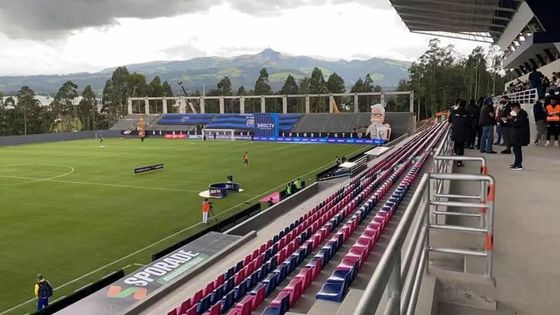

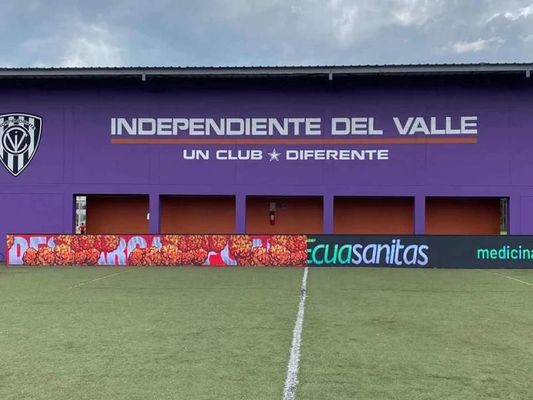

| 상품 이름 :: | P10 축구 경기장 주변은 화면 광고 방송 디스플레이를 이끌었습니다 | 수명 :: | 100000 시간 |
| 강조하다: | P10 Stadium Perimeter Led Panels,5500nits Stadium Perimeter Led Panels,SMD3535 Outdoor Perimeter Led Panels |
||
The Features of P10 LED Module(2Scan):
1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.
3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.
6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.
7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.
8. LED Single-lamp maintenance with low cost.
9. Environmental-friendly and energy-saving.
led display Product parameter
| Unit Module | Item | Parameter |
| Model Number | cn-P10-2scan | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000pcs/Square meters | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power consumpion | 30W | |
| Module thickness | 17mm | |
| Weight | 0.8KG | |
| Drive type | Constant drive | |
| Scan mode | 1/2scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥7000cd/Square meters | |
| bracket | Size | 320mm*160mm |
|
LED Unit Module |
Dimension | 960mm*960mm |
| Quanty of Module | 18 | |
| Power supply | 5V/40A*3 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 96*96 | |
| Best viewing distance | 10M~50M | |
| Best viewing distance | 140°(W) 120°(H) | |
| Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 260W/Square meters | |
| Max.Power consumption | ≤800W/Square meters | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver |
| Refresh frequency | ≥400HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
1. 100% brand new
2. Payment: Bank transfer or Western Union and etc.
3. Reply your inquiry in 24 working hours.
4. Customized design is available, OEM acceptable.
5. Exclusive and unique solution can be provided.
6. Special discount and protection of sales area provided to our distributor.
7. Welcome your visit to our factory and company offices.
8. Warranty: 2 years warrenty, life-long maintenance.
