심천 Shichuangxinke 전자공학 Co., 주식 회사

전문가는 좋은 품질을 만들고, 각 고객에게 완벽한 제품 및 서비스를 제공합니다.

제품 소개스타디움 표시 LED가

P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W

P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W

P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W
제품 상세 정보:
원래 장소: 중국
브랜드 이름: SCX
인증: CE/ROHS/FCC/ISO/UL
모델 번호: P8
결제 및 배송 조건:
최소 주문 수량: 10 스큐텀
가격: 협상 가능
포장 세부 사항: 비행기 경우, 나무 상자, 통, 그것이 당신에게 달려있습니다.
배달 시간: 8-16 일로 일합니다
지불 조건: L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램
공급 능력: 6500의 sqm 달
접촉
상세 제품 설명
애플리케이션 :: 광고 색 :: 풀 컬러
패널 사이즈 :: 960x960mm 디스플레이 기능 :: 화면
내각 결의안 :: 96*96pixel LED 구성 :: SMD3535
화소 조밀도:: 10000dots/m2 입력 전압:: 100-240V
갱신 속도 :: >1920Hz 보증 :: 3년
강조하다:

SMD3535 Stadium Perimeter LED Board

,

1R1G1B Stadium Perimeter LED Board

,

780W Stadium Led Video Wall

SCX LED Football Stadium Perimeter Led Screen Display P5 P6 P8 P10 LED Module Advertising Outdoor Led Large Screen Display





Indoor & Outdoor P6 P8 P10 football basketball stadium perimeter led screen stadium led display

* High brightness & High refresh rate.
* Nova star/Linsn/Colorlight control system indoor outdoor led screen

Specification
Item
P6
P8
P10
Pixel Pitch
6mm
8mm
10mm
Pixel Configuration
1R1G1B
1R1G1B
1R1G1B
LED Type
SMD3535
SMD3535
SMD3535
LED Module Size
192*192mm
320*160mm
320*160mm
Module Resolution
32*32pixel
40*20pixel
32*16pixel
Pixel Per SQM
27777dots/m2
15625dots/m2
10000dots/m2
Refresh Rate
1920/3840Hz
1920/3840Hz
1920/3840Hz
Scan Mode
1/4 scan
1/4 scan
1/4 scan
Brightness
>=6500CD
>=6500CD
>=6500CD
Cabinet Material
Die casting aluminum
Die casting aluminum
Die casting aluminum
Cabinet Resolution
160*160pixel
120*120pixel
96*96pixel
Cabinet Size
960*960*150mm
960*960*150mm
960*960*150mm
Cabinet Weight
30kg
30kg
30kg
Waterproof Grade
IP65
IP65
IP65
Max Power Consumption
780W
780W
780W
Ave Power Consumption
260W
260W
260W
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 0
Product detail
* Soft mask: Protect LEDS and cabinet from running ball.
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 1
* When a player accidentally bumps into, protect the player from injury.
* Can be disassembled
Assembling the cabinet up and down, right and left.
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 2
Bracket: Seven inclination grooves.
Adjustable inclination of cabinet: 85-40 degrees
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 3

LED Display Seamless Splicing

* Slim and light weight, quick disassembly.
* High degree of protection,high durability.
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 4

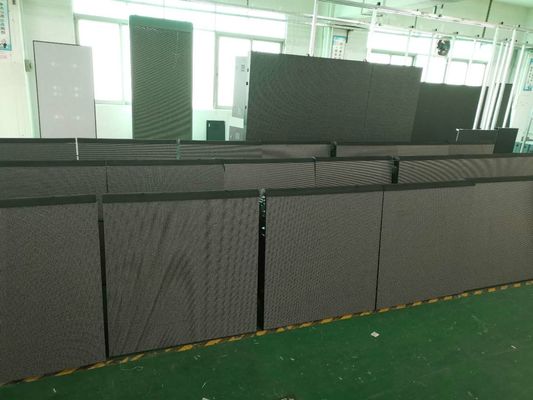

LED Display Test

Each product tested more than 72 hours before shipment.
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 5


Recommend For You
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 6
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 7

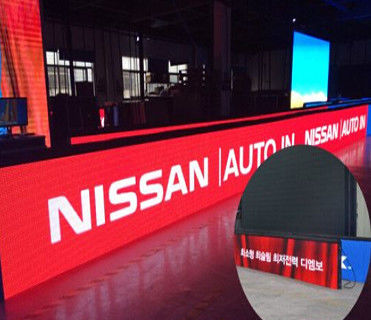

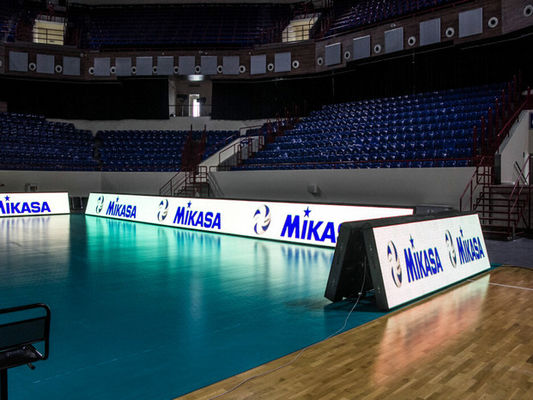

LED Display Case
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 8
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 9
P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W 10

FAQ







FAQ

Q1: What's the warranty for your LED Display Screen?

A1: We have a 3-year warranty for our led display screen and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within the warranty time!

Q3: What's your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use ONBON or XIXUN control system.

If you have another option, please let us know.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products
