| Place of Origin: | ShenZhen in China |
| 브랜드 이름: | SCXK |
| 인증: | CE/ROHS/FCC/ISO/CB |
| Model Number: | P3 |
| Minimum Order Quantity: | 3 pcs |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 pcs per month |
| Pixels: | 3mm | Tube Chip Color: | Full color |
|---|---|---|---|
| Led Type: | SMD2121 | Waterproof: | IP43 |
| MBI: | 5024 | Viewing angle: | H:160 V:140 |
| Voltage: | DC5V | LED parameter: | R:625-630nm |
| Module: | 192*192mm | Cabinet: | 576*576mm |
| 강조하다: | P3 indoor LED display screen,wall mount LED video screen,full color LED display rental |
||
| Attribute | Value |
|---|---|
| Pixels | 3mm |
| Tube Chip Color | Full color |
| Led Type | SMD2121 |
| Waterproof | IP43 |
| MBI | 5024 |
| Viewing angle | H:160 V:140 |
| Voltage | DC5V |
| LED parameter | R:625-630nm |
| Module | 192*192mm |
| Cabinet | 576*576mm |

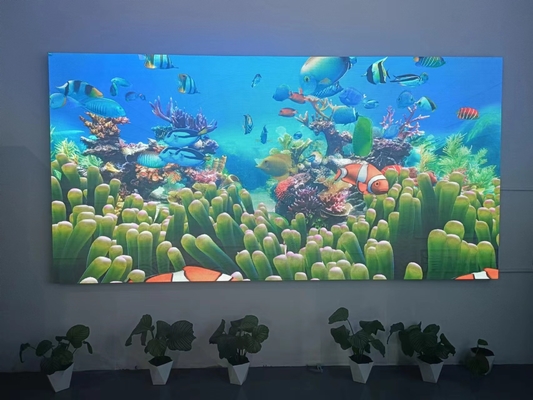

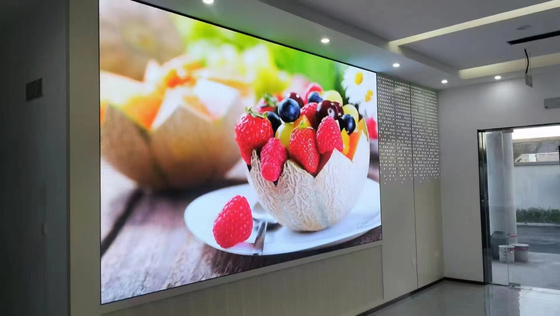

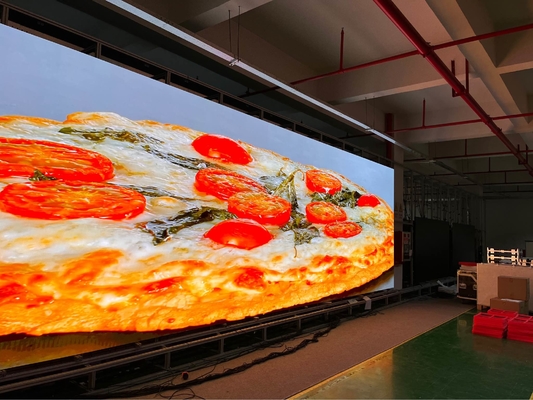

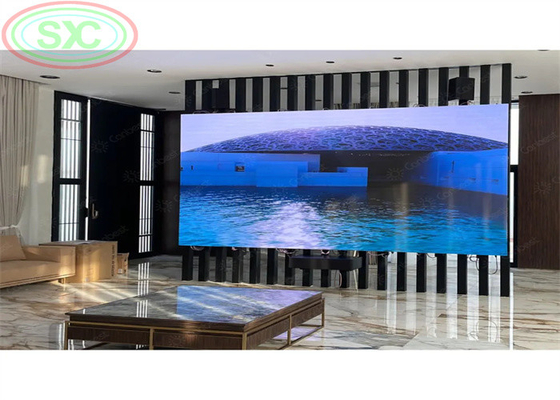

Wall Mount Full Color Video Led Screen Rental Fixing P3 Indoor Display Screen
| Indoor SMD P3 | |
| Lamp size | 2121 |
| Resolution/mm | 3 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 111111/m² |
| Module resolution | 64x64 |
| Module size/mm | 192x192mm |
| View distance | ≥3m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <300W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Receiving-Card
Sending-Card
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What's more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we'll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
